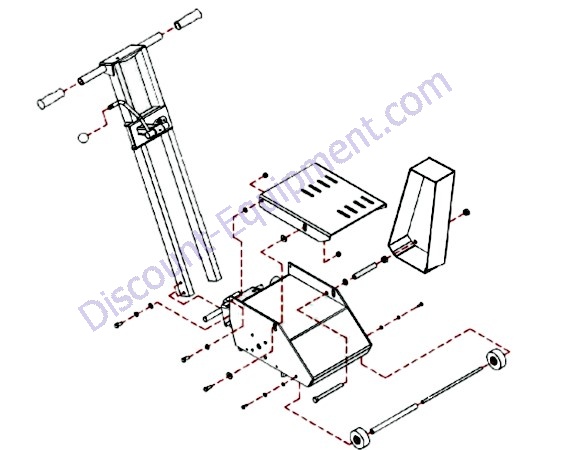

TFP9 Frame Assembly

  • Hover over the parts to see the part number
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





0000PU11NG

0000PU11NG HANDLE GRIP TK TFP9 Scarifier

Your Price: $14.40

Click For Price and Specs

0000RD03RD

0000RD03RD FRONT WHEEL 3" X 1-1/2" TK TFP9 Scarifier

Your Price: $42.00

Click For Price and Specs

0503CO01CA

0503CO01CA MAIN BODY HOUSING TK TFP9 Scarifier

Your Price: $225.00

Click For Price and Specs

0503CO01GB

0503CO01GB BELT GUARD TK TFP9 Scarifier

Your Price: $42.00

Click For Price and Specs

0503CO01MA

0503CO01MA HANDLE ASSEMBLY TK TFP9 Scarifier

Your Price: $60.00

Click For Price and Specs

0503CR03RD

0503CR03RD FRONT AXLE WITH SPACER TK TFP9 Scarifier

Your Price: $30.00

Click For Price and Specs

0503PL01BM

0503PL01BM MOUNTING PLATE TK TFP9 Scarifier

Your Price: $52.80

Click For Price and Specs

0503TU01GB

0503TU01GB BELT GUARD SPACER TK TFP9 Scarifier

Your Price: $15.00

Click For Price and Specs

0503TU01RD

0503TU01RD SPACER FRONTAL AXLE TK TFP9 Scarifier

Your Price: $15.00

Click For Price and Specs

238202

238202 KNOB BALL 1-3/8" WITH 1/2-13 THD YLW TK TFP9 Scarifier

Your Price: $8.10

Click For Price and Specs

RNPX012GAL

RNPX012GAL FLAT WASHER 1/2" TK TFP9 Scarifier

Your Price: $5.27

Click For Price and Specs

RNPX014GAL

RNPX014GAL FLAT WASHER 1/4" HOUSING WHEELS TK TFP9 Scarifier

Your Price: $4.65

Click For Price and Specs

RNPX038GAL

RNPX038GAL PLAIN WASHER 3/8" TK TFP9 Scarifier

Your Price: $4.64

Click For Price and Specs

RNRX014GAL

RNRX014GAL LOCK WASHER 1/4" HOUSING WHEELS TK TFP9 Scarifier

Your Price: $4.65

Click For Price and Specs

RNRX038GAL

RNRX038GAL LOCK WASHER 3/8 TK TFP9 Scarifier

Your Price: $4.65

Click For Price and Specs

TCCN012GAL

TCCN012GAL LOCKNUT HEX 1/2" TK TFP9 Scarifier

Your Price: $4.65

Click For Price and Specs

TCCS012GAL

TCCS012GAL HEX LOCKNUT 1/2" TK TFP9 Scarifier

Your Price: $4.75

Click For Price and Specs

TCCS038GAL

TCCS038GAL LOCK NUT HEX 3/8" TK Equipment TFP9 Scarifier

Your Price: $4.75

Click For Price and Specs

TOCD012512

TOCD012512 HEX HEAD BOLT 1/2" x 5-1/2" NC TK TFP9 Scarifier

Your Price: $3.00

Click For Price and Specs

TOCD014034

TOCD014034 HEX HEAD BOLT 1/4" x 3/4" NC WHEELS TK TFP9 Scarifier

Your Price: $4.75

Click For Price and Specs

TOCD038100

TOCD038100 HEX HEAD SCREW 3/8 x 1 TK TFP9 Scarifier

Your Price: $4.75

Click For Price and Specs

TOCD038114

TOCD038114 BOLT 3/8" X 1-1/4" HX GR5 TK TFP9 Scarifier

Your Price: $4.65

Click For Price and Specs
