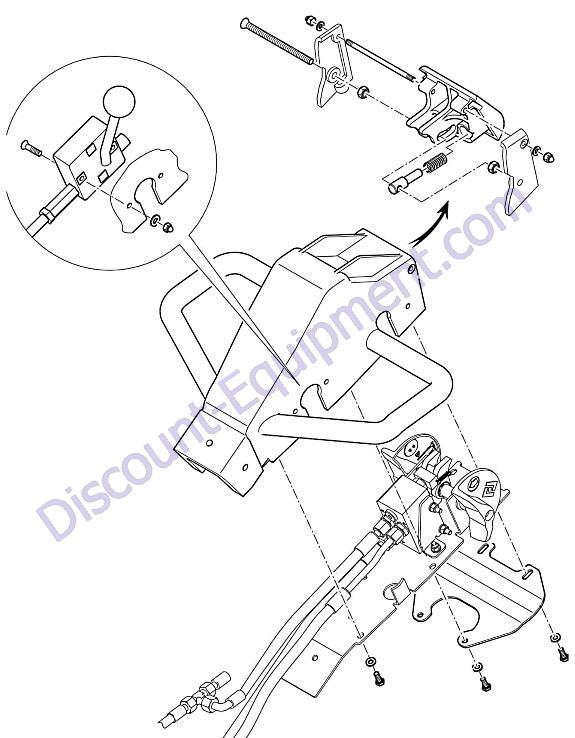

Bomag BPR70/70D Travel Actuation Assembly – 1: Serial Number: 101692631502 and Up

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05561598

05561598 Throttle control Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

05661329

05661329 Pressure spring Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

07140626

07140626 Hexagon bolt Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

07320641

07320641 Countersunk screw Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

08110813

08110813 Hexagon nut Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

08240610

08240610 Domed cap nut Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

08510612

08510612 Washer Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

69110301

69110301 Journal Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

69110307

69110307 Steering rod handle Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

69110314

69110314 Rocker Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

69110324

69110324 Countersunk screw Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

69270121

69270121 Guard Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs

70130152

70130152 Threaded rod Bomag BPR70-70D Reversible Plate Compactor

Click For Price and Specs
