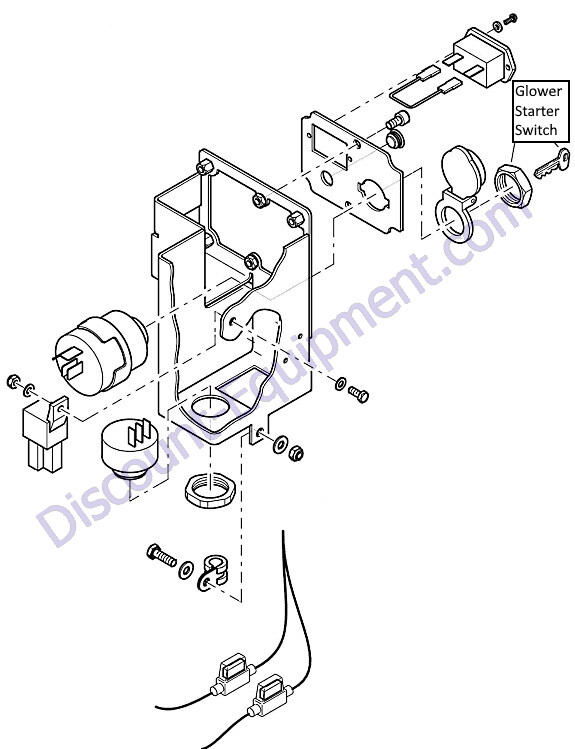

Bomag BPR 60/65D Central Electrics Assembled

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05551901

05551901 Tube clamp Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05751225

05751225 Warning buzzer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05755124

05755124 Key Ignition Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05755196

05755196 Flat fuse Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05755207

05755207 Flat fuse Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05766813

05766813 Glower Starter Switch Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05766885

05766885 Cover Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05766887

05766887 Hourmeter Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

05766958

05766958 Relay Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

06510212

06510212 Plug Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07140520

07140520 Hexagon bolt Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07140633

07140633 Hexagon bolt Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07210316

07210316 Pens head screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

07230693

07230693 Socket-head cap screw Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08130508

08130508 Safety nut Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08130611

08130611 Safety nut Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08510307

08510307 Washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08510511

08510511 Washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

08751064

08751064 Spring washer Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69070241

69070241 Wire harness Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69070245

69070245 Cover plate Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69070256

69070256 Box Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs

69270123

69270123 Wire harness Bomag BPR60-65D Reversible Plate Compactor

Click For Price and Specs
