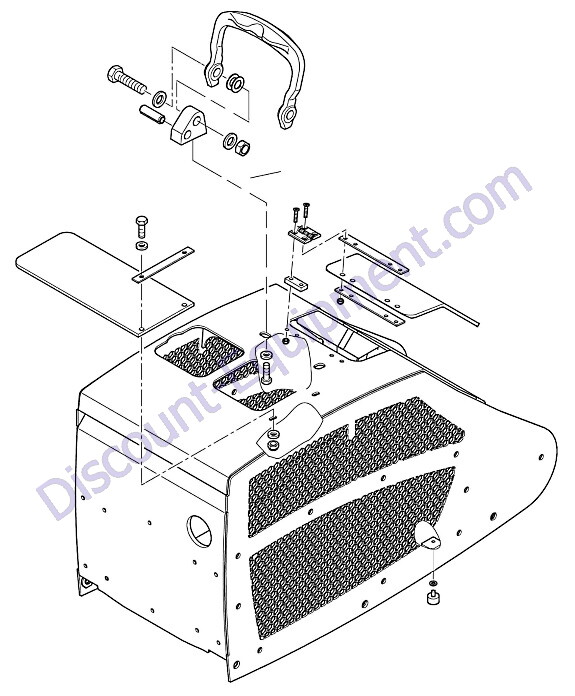

Bomag BPR35/60D Special Equipment: Hood Assembly - 1 - Serial Number: 101692221131 and Up

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05939167

05939167 Hinge Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

06140945

06140945 Stop buffer Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

07131624

07131624 Hexagon bolt Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

07140641

07140641 Hexagon bolt Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

07141224

07141224 Hexagon bolt Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

07320523

07320523 Countersunk screw Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08130508

08130508 Safety nut Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08130611

08130611 Safety nut Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08131621

08131621 Safety nut Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08510612

08510612 Washer Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08511730

08511730 Washer Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08752130

08752130 Spring washer Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

09151615

09151615 Dowel pin Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

09293152

09293152 Belleville spring Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120111

69120111 Flat steel Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120138

69120138 Holder Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120310

69120310 Cover plate Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120337

69120337 Strip steel Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120353

69120353 Strip steel Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120478

69120478 Cover plate Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120568

69120568 Single-Point-Lifting-Dev. Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120680

69120680 Hood Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69120745

69120745 Hood Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs
