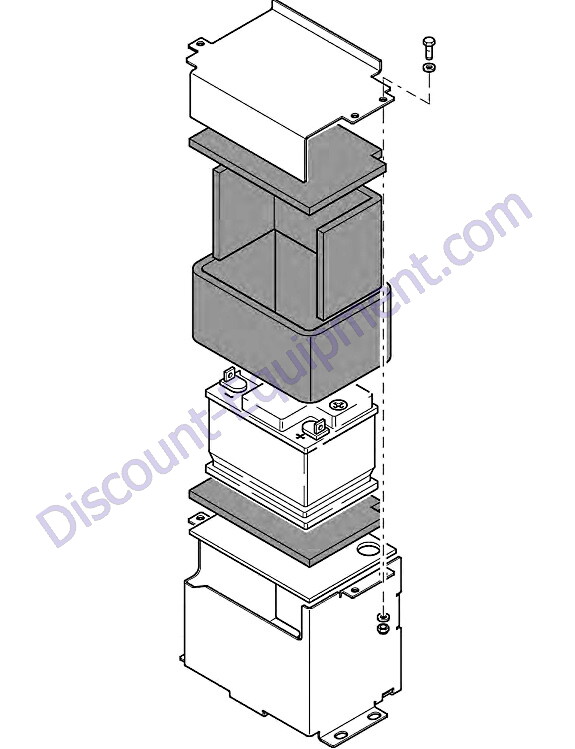

Bomag BPR35/60D Battery

  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





05753234

05753234 Battery Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

07140824

07140824 Hexagon bolt Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08130813

08130813 Safety nut Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

08510817

08510817 Washer Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070144

69070144 Insulating mat Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070207

69070207 Insulating mat Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070208

69070208 Insulating mat Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070216

69070216 Support Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070225

69070225 Battery box cover Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070226

69070226 Battery box Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs

69070227

69070227 Insulating mat Bomag BPR35-60D Reversible Plate Compactor

Click For Price and Specs
