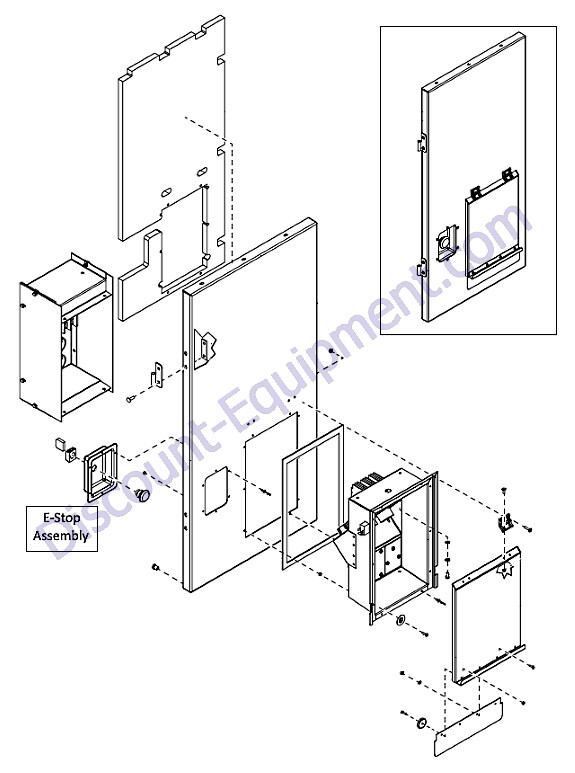

Generac Magnum MDG175DF4 Receptacle E-Stop Panel Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

10000011935 Plate hinge back threaded Generac Magnum MDG175DF4 Diesel Generator

Your Price: $15.43

Click For Price and Specs

10000018322 Receptacle E-Stop Panel Assembly Generac Magnum MDG175DF4 Diesel Generator

Click For Price and Specs

10000019360 Panel receptacle/E-stop Generac Magnum MDG175DF4 Diesel Generator

Click For Price and Specs

10000019958 Screw 10-32 x .625 flat head Phillips SS Generac Magnum MDG175DF4 Diesel Generator

Your Price: $1.41

Click For Price and Specs

10000023620 Foam receptacle/E-stop panel green Generac Magnum MDG175DF4 Diesel Generator

Your Price: $45.22

Click For Price and Specs

18460B Hinge Left Female Generac Magnum MDG175DF4 Diesel Generator

Your Price: $30.58

Click For Price and Specs

22550SRV Assembly e-stop Generac Magnum MDG175DF4 Diesel Generator

Your Price: $87.13

Click For Price and Specs

30645 Panel emergency stop Generac Magnum MDG175DF4 Diesel Generator

Your Price: $15.43

Click For Price and Specs

35394 Hinge door small Generac Magnum MDG175DF4 Diesel Generator

Your Price: $11.49

Click For Price and Specs

51719W Door receptacle box Generac Magnum MDG175DF4 Diesel Generator

Your Price: $110.23

Click For Price and Specs

51721 Flap receptacle door rubber Generac Magnum MDG175DF4 Diesel Generator

Your Price: $2.37

Click For Price and Specs

51725 Cup magnet 1-15/64 diameter #14 pull Generac Magnum MDG175DF4 Diesel Generator

Your Price: $9.69

Click For Price and Specs

54990 Assembly receptacle/breaker box Generac Magnum MDG175DF4 Diesel Generator

Click For Price and Specs

55059 Gasket receptacle door Generac Magnum MDG175DF4 Diesel Generator

Click For Price and Specs

60061 Nut 10-32 nylock Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60243 Washer .250 flat .735/.060 Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60260 Rivet .188 diameter x .375 to .500 grip SS Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.19

Click For Price and Specs

60269 Washer #8 flat .433/.036 Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60277 Screw 10-32 x .500 pan Phillips SS Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

60281 Screw .250-20 x .750 standard hex G5 Generac Magnum MDG175DF4 Diesel Generator

Your Price: $1.29

Click For Price and Specs

60286 Washer .250 split lock Generac Magnum MDG175DF4 Diesel Generator

Your Price: $1.29

Click For Price and Specs

61180 Screw 10-32 x .750 pan Phillips SS Generac Magnum MDG175DF4 Diesel Generator

Your Price: $3.29

Click For Price and Specs

62140 Washer cup #10 1.50/.03 Generac Magnum MDG175DF4 Diesel Generator

Your Price: $22.78

Click For Price and Specs

63231 Insert threaded .250-20 hex .027-.165 grip Generac Magnum MDG175DF4 Diesel Generator

Your Price: $8.25

Click For Price and Specs

63346 Screw .312-18 x 1.00 Scytrx sq SS Generac Magnum MDG175DF4 Diesel Generator

Your Price: $2.13

Click For Price and Specs

65470 Switch E-stop operator Generac Magnum MDG175DF4 Diesel Generator

Your Price: $67.18

Click For Price and Specs

65580 Block E-stop contactor Generac Magnum MDG175DF4 Diesel Generator

Your Price: $14.73

Click For Price and Specs
