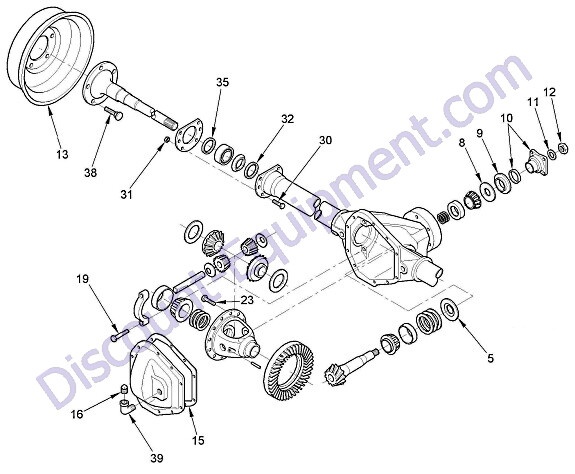

Laymor SweepMaster 450 Rear Axle Assembly


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • Not all parts shown in the phone are listed below
  • Please refer to Pages 50-52 in the Laymor Sweepmaster 450 Parts Manual for more information
  • Clicking on the part will take you to the part





7112200

10568598 (7112200) REAR AXLE ASSEMBLY Laymor Sweepmaster 450 Sweeper

Your Price: $6,276.75

Click For Price and Specs

435727

REF #5 - 10560381 (435727) BAFFLE PINION BEARING Laymor Sweepmaster 450 Sweeper

Your Price: $9.29

Click For Price and Specs

10349222

REF #8 - 10349222 SLINGER PINION BEARING OUTER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

435743

REF #9 - 10351965 (435743) SEAL PINION Laymor Sweepmaster 450 Sweeper

Your Price: $22.05

Click For Price and Specs

10349214

REF #10 - 10349214 COMPANION FLANGE ASSEMBLY Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349224

REF #11 - 10349224 WASHER PINION NUT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349225

REF #12 - 10349225 NUT PINION Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349610

REF #13 - 10349610 DRUM Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

066043

REF #15 - 10560351 (066043) GASKET Laymor Sweepmaster 450 Sweeper

Your Price: $18.56

Click For Price and Specs

031740

REF #16 - 10560338 (031740) PLUG COVER 3/4-NPT Laymor Sweepmaster 450 Sweeper

Your Price: $60.19

Click For Price and Specs

10349230

REF #17 - 10349230 BOLT CARRIER COVER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

037622

REF #19 - 10560343 (037622) BOLT DIFFERENTIAL BEARING CAP Laymor Sweepmaster 450 Sweeper

Your Price: $5.52

Click For Price and Specs

10349226

REF #23 - 10349226 BOLT DRIVE GEAR Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

435966

REF #30 - 435966 BOLT BRAKE MOUNTING Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349231

REF #31 - 10349231 NUT BRAKE MOUNTING Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349227

REF #32 - 10349227 SEAL SHAFT INBOARD Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349228

REF #35 - 10349228 SEAL SHAFT OUTBOARD Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10349599

REF #38 - 10349599 BOLT WHEEL Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

075796

REF #39 - 10351382 (075796) STREET ELBOW 90 DEGREE Laymor Sweepmaster 450 Sweeper

Your Price: $13.28

Click For Price and Specs

449207

10560382 (449207) PLUG AXLE FLANGE Laymor Sweepmaster 450 Sweeper

Your Price: $6.65

Click For Price and Specs
