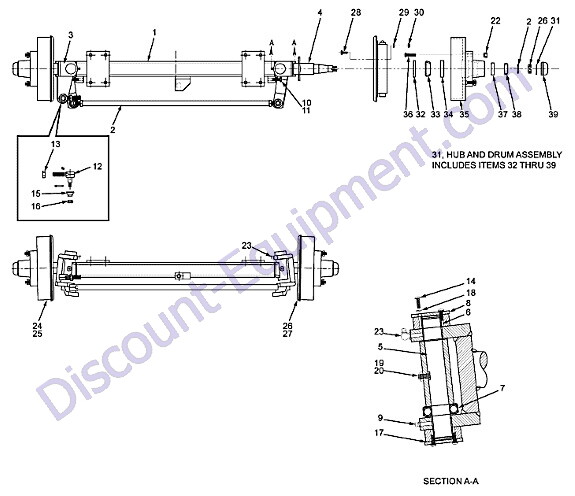

Laymor SweepMaster 450 Front Axle Assembly


  • Hover over the part on the breakdown below and click to see details
  • Click the red arrows to navigate to the next area of the machine
  • All parts shown are listed below the photo
  • Clicking on the part will take you to the part





7112100

7112100 FRONT AXLE ASSEMBLY WITHOUT BRAKES Laymor Sweepmaster 450 Sweeper

Your Price: $3,589.68

Click For Price and Specs

7112101

7112101 FRONT AXLE ASSEMBLY WITH BRAKES Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552569

REF #1 - 10552569 AXLE WELDMENT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10545249

REF #2 - 10545249 TIE ROD ASSEMBLY Laymor Sweepmaster 450 Sweeper

Your Price: $356.16

Click For Price and Specs

10512142

REF #3 - 10512142 L.H. KNUCKLE WELDMENT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552589

REF #4 - 10552589 R.H. KNUCKLE WELDMENT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552580

REF #5 - 10552580 KING PIN Laymor Sweepmaster 450 Sweeper

Your Price: $142.85

Click For Price and Specs

10552572

REF #6 - 10552572 BUSHING Laymor Sweepmaster 450 Sweeper

Your Price: $29.76

Click For Price and Specs

10552594

REF #7 - 10552594 THRUST BEARING Laymor Sweepmaster 450 Sweeper

Your Price: $79.20

Click For Price and Specs

10552581

REF #8 - 10552581 KING PIN CAP Laymor Sweepmaster 450 Sweeper

Your Price: $23.06

Click For Price and Specs

10552578

REF #9 - 10552578 GREASE ZERK Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552573

REF #10 - 10552573 CAP SCREW Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552585

REF #11 - 10552585 NUT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10512143

REF #12 - 10512143 TIE ROD END Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10512144

REF #13 - 10512144 NUT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552574

REF #14 - 10552574 CAP SCREW Laymor Sweepmaster 450 Sweeper

Your Price: $7.97

Click For Price and Specs

10552592

REF #15 - 10552592 SPINDLE WASHER Laymor Sweepmaster 450 Sweeper

Your Price: $13.28

Click For Price and Specs

10552588

REF #16 - 10552588 NUT SLOTTED HEX Laymor Sweepmaster 450 Sweeper

Your Price: $24.39

Click For Price and Specs

10552577

REF #17 - 10552577 GASKET KING PIN CAP Laymor Sweepmaster 450 Sweeper

Your Price: $10.62

Click For Price and Specs

10552583

REF #18 - 10552583 LOCK WASHER Laymor Sweepmaster 450 Sweeper

Your Price: $5.07

Click For Price and Specs

10552591

REF #19 - 10552591 SETSCREW Laymor Sweepmaster 450 Sweeper

Your Price: $6.65

Click For Price and Specs

10552586

REF #20 - 10552586 NUT Laymor Sweepmaster 450 Sweeper

Your Price: $24.39

Click For Price and Specs

10552576

REF #21 - 10552576 COTTER PIN Laymor Sweepmaster 450 Sweeper

Your Price: $6.65

Click For Price and Specs

10545584

REF #22 - 10545584 NUT TAPERED WHEEL Laymor Sweepmaster 450 Sweeper

Your Price: $13.28

Click For Price and Specs

10552579

REF #23 - 10552579 GREASE ZERK Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552582

REF #24 - 10552582 LH SELF-ADJUSTING BRAKE 12 X 2 Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552570

REF #25 - 10552570 BRAKE KIT LH Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552590

REF #26 - 10552590 RH SELF-ADJUSTING BRAKE 12 X 2 Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552571

REF #27 - 10552571 BRAKE KIT RH Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552575

REF #28 - 10552575 CAPSCREW Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552584

REF #29 - 10552584 LOCK WASHER Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10552587

REF #30 - 10552587 NUT Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10545562

REF #31 - 10545562 HUB AND DRUM ASSEMBLY COMPLETE Laymor Sweepmaster 450 Sweeper

Your Price: $414.96

Click For Price and Specs

10545570

REF #32 - 10545570 GREASE SEAL Laymor Sweepmaster 450 Sweeper

Your Price: $28.39

Click For Price and Specs

130580500

REF #33 - 130580500 INNER CONE Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

130405200

REF #34 - 130405200 INNER CUP Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

10545569

REF #35 - 10545569 HUB AND DRUM CUPPED AND STUDDED Laymor Sweepmaster 450 Sweeper

Your Price: $314.35

Click For Price and Specs

10552593

REF #36 - 10552593 STUD Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

130495200

REF #37 - 130495200 OUTER CUP Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

130500100

REF #38 - 130500100 OUTER CONE Laymor Sweepmaster 450 Sweeper

Click For Price and Specs

06-60479

REF #39 - 06-60479 GREASE CAP Laymor Sweepmaster 450 Sweeper

Click For Price and Specs
