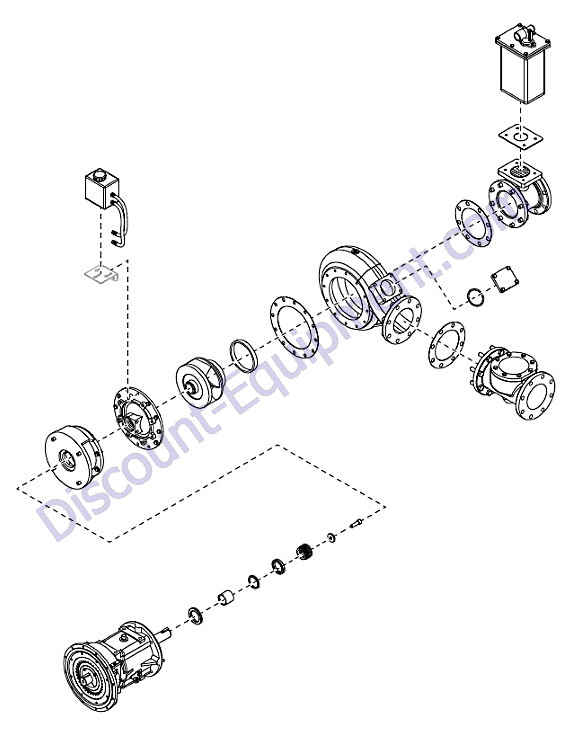

Generac Magnum MTP6DZD Internal Pump Assembly

Hover over the part on the breakdown below and click to see details
Click the red arrows to navigate to the next area of the machine
All parts shown are listed below the photo
Clicking on the part will take you to the part

52018 Deflector Generac Magnum MTP6DZD Trash Pump

Your Price: $67.18

Click For Price and Specs

52049 Reservoir oil w/cap run dry Generac Magnum MTP6DZD Trash Pump

Your Price: $269.00

Click For Price and Specs

52077 Gasket priming chamber lower Generac Magnum MTP6DZD Trash Pump

Your Price: $43.18

Click For Price and Specs

52107 Ring wear 7.50 x 6.75 x .88 open Generac Magnum MTP6DZD Trash Pump

Your Price: $1,399.00

Click For Price and Specs

52108 Volute 6NNT w/clean out Generac Magnum MTP6DZD Trash Pump

Your Price: $3,049.05

Click For Price and Specs

52109 Gasket volute Generac Magnum MTP6DZD Trash Pump

Your Price: $49.78

Click For Price and Specs

52111 Cover clean out Generac Magnum MTP6DZD Trash Pump

Your Price: $118.93

Click For Price and Specs

52114 Impeller 6NNT 1.94 in blind bore Generac Magnum MTP6DZD Trash Pump

Your Price: $4,449.00

Click For Price and Specs

52115 Washer impeller Generac Magnum MTP6DZD Trash Pump

Your Price: $158.99

Click For Price and Specs

52116 Lock screw .62NC x 2.0 socket head Generac Magnum MTP6DZD Trash Pump

Your Price: $75.58

Click For Price and Specs

52119 Backplate Generac Magnum MTP6DZD Trash Pump

Your Price: $2,699.00

Click For Price and Specs

52123 Sleeve 2.50 x 2.0 x 2.25 chrome Generac Magnum MTP6DZD Trash Pump

Your Price: $1,439.00

Click For Price and Specs

52126 Seal 2002S RP Generac Magnum MTP6DZD Trash Pump

Your Price: $2,049.00

Click For Price and Specs

52127 Seal lip 2.50 x 3.375 Generac Magnum MTP6DZD Trash Pump

Your Price: $113.38

Click For Price and Specs

52128 V-ring Generac Magnum MTP6DZD Trash Pump

Your Price: $197.99

Click For Price and Specs

52135 Bracket 8B4 Generac Magnum MTP6DZD Trash Pump

Your Price: $1,369.00

Click For Price and Specs

52139 Seal lip Generac Magnum MTP6DZD Trash Pump

Your Price: $87.13

Click For Price and Specs

52159 Hose .38 ID Generac Magnum MTP6DZD Trash Pump

Your Price: $7.17

Click For Price and Specs

52162 Assembly Priming Chamber Generac Magnum MTP6DZD Trash Pump

Your Price: $2,349.00

Click For Price and Specs

52196 Spool 6.0 x 6.0 fabricated Generac Magnum MTP6DZD Trash Pump

Your Price: $6,939.00

Click For Price and Specs

52197 Gasket 6.0 in full face Generac Magnum MTP6DZD Trash Pump

Your Price: $123.88

Click For Price and Specs

52199 Valve 6.0 x 6.0 Generac Magnum MTP6DZD Trash Pump

Your Price: $2,249.00

Click For Price and Specs
